Export your schema

Once a schema is on the canvas, you can take it out in five different shapes depending on where it is going.

The formats

Format	File	For
Bubble JSON	`.json`	Re-importing into LumiDevKit, or archiving
Postgres SQL	`.sql`	Pasting into the Supabase SQL editor
Markdown	`.md`	A human-readable data dictionary
Prisma	`.prisma`	A `schema.prisma` for Prisma ORM
Drizzle	`.ts`	A Drizzle `pg-core` schema

The last four are behind the Export as… button. Bubble JSON is the separate Download JSON action, and it is the round-trip format: what comes out can be uploaded straight back in.

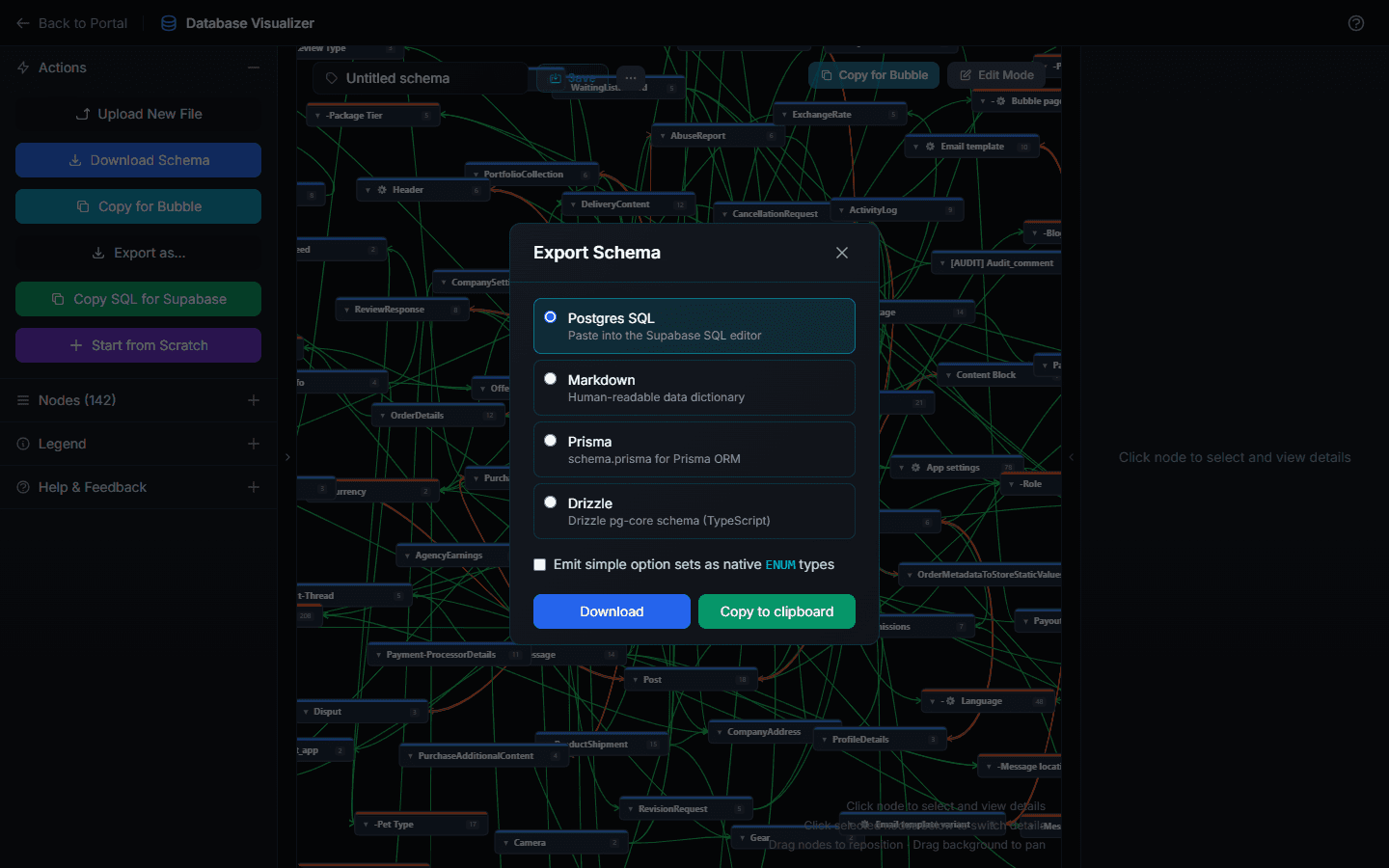

The Export as… dialog. Pick a format, decide whether simple option sets become native ENUM types, then download the file or take it straight to the clipboard.

Two actions produce no file at all. Copy for Bubble puts the schema on the clipboard for the LumiDevKit extension — see push a schema into Bubble. Copy SQL for Supabase puts the Postgres SQL on the clipboard for the Supabase SQL editor, always with option sets as lookup tables, so use Export as… if you want the ENUM choice.

How relationships translate to SQL

A single reference becomes a <field>_id uuid column with a deferred ALTER TABLE … ADD CONSTRAINT … FOREIGN KEY. Deferring the constraints means a schema with reference cycles still runs top to bottom.
A list of references becomes a junction table named <owner>_<field>, with a position column so ordering survives, marked COMMENT ON TABLE … IS 'lumidevkit:join'.
A list of plain values becomes a Postgres array column.
Bubble's built-in User becomes a public.profiles table keyed to auth.users(id), the Supabase convention. It is only emitted if something actually references the User.
Tables are emitted in dependency order.

Every data-type table gets id uuid PRIMARY KEY DEFAULT gen_random_uuid(), created_at and updated_at. None of the tables LumiDevKit generates for you carries that full set: a junction table carries its two foreign keys and position under a composite primary key, an option set lookup table carries id, value, label and sort_order, and profiles carries id (the foreign key to auth.users) and created_at.

Option sets: lookup tables or native enums

By default an option set becomes a <name>_options lookup table with value, label and sort_order columns, plus an INSERT block seeding its values.

The "Emit simple option sets as native ENUM types" checkbox switches to CREATE TYPE … AS ENUM — but only for option sets that qualify: they must have no custom attributes and must not be used by any list-of-options field. Anything that does not qualify stays a lookup table even with the box ticked, because an enum cannot carry attributes or be used as a list.

Round-trip fidelity

SQL export and import are designed to round-trip, which is why the export writes lumidevkit: comment markers. Display names that differ from what would be derived from the column name are preserved as COMMENT ON COLUMN markers.

What does not survive a round trip: privacy rules, deleted items (they are skipped on export), and Bubble types the diagram does not model such as date_range.

Deleted items

The four Export as… formats exclude deleted data types, deleted option sets and deleted fields. If you want them in SQL, Markdown, Prisma or Drizzle, undelete them in Bubble first.
